Introduction

Thank you for your trust in our company and for buying the new Party 6. We hope you enjoy it.

Before using your Party 6 we strongly recommend to read this manual in order to get used to it and make the most of the product.

Care and maintenance

  • Do not expose your Party 6 to impacts, humidity or high temperatures.

  • Do not use neither corrosive nor abrasive cleaning products.

  • Do not dismantle the device. All reparation works should be carried out exclusively by qualified staff of Energy Sistem Technology, S.A.

Technical specifications

AUDIO

  • 2.1 sound system
  • Power: 240 W
  • Digital signal processor (DSP): 16 bits/ 48 kHz
  • 4 tweeters of 2" and 10 W each one.
  • 2 full range speakers of 6.5" and 100 W each one.
  • Frequency response: 20 Hz ~ 20 kHz
  • 5-band analogue equalizer
  • Wooden cabinet speakers

BLUETOOTH CONNECTION

  • A2DP; AVRCP protocols
  • Bluetooth 4.0 Class II
  • Operating frequency: 2.4 GHz (2.402-2.480 GHz)
  • Distance range up to 10 m
  • Maximum output power: 0.525 dBm ± 4.1dB

DIGITAL INPUTS

  • USB decoder up to 64 GB capacity with FAT/FAT32 file system. Supported audio formats: WAV and MP3

ANALOGUE INPUTS

  • 3.5 mm mini jack input (analogue stereo input)
  • RCA audio-in (analogue stereo input)
  • Mono jack input (microphone)
  • Jack guitar input with potentiometer

ANALOGUE OUTPUTS

  • RCA audio-out (analogue stereo output)

FM RADIO

  • IEC male antenna connector
  • Frequency range (FM): 87.5 - 108 MHz
  • Auto search function

OTHER FEATURES

  • LED lights with 3 different modes
  • 2.4" LED display
  • Remote control with up to 10 meters range
  • ENERGY MUSIC POWER 600 function
  • Adjustable reverb effect for microphone input
  • USB charging port: 5 V, 2 A
  • Power supply: AC 200-240 V, 50 Hz
  • IEC power cable (150 cm)

Product content

  • Party 6
  • Remote control
  • Two AAA batteries
  • Power cable
  • Mini jack cable
  • Radio antenna
  • Microphone
  • Microphone cable
  • Quick guide

Overview

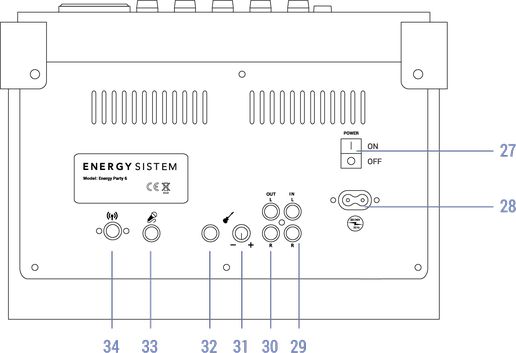

Schema

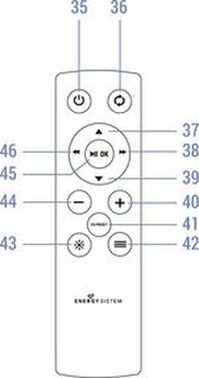

Schema Schema
1. Device holder
2. Digital equalizer with presets
3. USB function
4. Bluetooth function
5. Line-in function
(mini jack/ RCA)
6. FM radio function
7. Playback mode (USB)/ Restart (Bluetooth)
8. Enable manual equalizer
9. USB charging port
10. Mini jack audio-in
11. Volume control
12. Volume control (microphone)
13. Lighting modes
14. Display
15. MUSIC POWER 600
16. On/ Off
17. Microphone echo effect
18. Stop/ Restart (USB)
19. Adjust - FM frequency/ Previous folder (USB)
20. Next
21. Back
22. Play and pause/ Tune in
23. Adjust + FM frequency/ Next folder (USB)
24. Headphones output
25. Sound equalizer controller (manual EQ)
26. USB port to transfer data
27. Power switch
28. Power cable connection
29. RCA input (stereo input)
30. RCA output (stereo output)
31. Guitar volume (jack audio-in)
32. Jack audio-in for guitar
33. Jack audio-in for microphone
34. FM Radio connection
35. On/ Off
36. Change function
37. Adjust + FM frequency/ Next folder (USB)
38. Next
39. Adjust - FM frequency/ Previous folder (USB)
40. Volume +
41. Equalizer with presets
42. Playback mode (USB)/ Restart (Bluetooth)
43. Lighting modes
44. Volume -
45. Play and pause/ FM tuning
46. Back

Switching on and off the device

Once the Party 6 has been plugged into a socket, turn it on by moving the Power switch (27) to the "ON" position. From that moment on, you can turn it on or off by pressing the On/ Off button (16) on the device top display or the same button (35) on the remote control.

If you are not going to use the speaker for a long period of time, we recommend to move the Power switch (27) to the "OFF" position.

Important: Your Party 6 features Auto Power-Off. This means that the device turns off automatically after 15 minutes, provided that it is on and is not playing music.

Playback settings

You will find the playback mode buttons (USB, Bluetooth, AUX and FM Radio) on the upper part of the top display. You will see the selected function on the Display (14). You will be able to change function by pressing the Change function button (36) on the remote control.

Bluetooth connection

In order to synchronize any Bluetooth device with your Party 6, you must enable Bluetooth mode first. To do so, press the Bluetooth function button (4) and the word "Bluetooth" will appear on the Display (14). At this point you can start the pairing process.

Press "connect" when you see "Party 6" on your Bluetooth device screen. The devices will be connected immediately. You will hear a sound that confirms that both devices have been paired correctly.

If you want to pair your speaker to another Bluetooth device, press and hold the Playback mode (USB)/ Restart (Bluetooth) button (7) for a few seconds until you hear a confirmation sound. At this point, your Party 6 will start a new search.

Removable USB units

Your Party 6 allows you to play .mp3 and .wav files from USB sticks up to 64 GB.

Connect the USB stick into the USB port to transfer data (26) and your Party 6 will switch automatically to USB mode to play the USB contents.

If you turn off the Party 6 or remove any storage unit, the internal memory will save the moment when you paused playback. If you connect the same removable storage unit once again, playback will resume from the point at which it stopped.

To browse songs, press Next (20) and Back (21) on the display or the same buttons, (38) and (46), on the remote control. To move to the next or the previous track, press and hold Next (20) and Back (21) on the display or the same buttons, (38) and (19), on the remote control for 4 seconds.

Press Adjust + FM frequency/ Next folder (USB) or Adjust + FM frequency/ Previous folder (USB), (19) and (23) on the device top display or (37) and (39) on the remote control to change folder.

USB playback mode

Press Playback mode (USB)/ restart (Bluetooth) (7) to select between these 5 options:

1) ALL: all USB contents will be repeated.

Folders and songs of removable storage units will be read in alphabetical order.

The songs saved in the root folder of the storage unit will be read first and in alphabetical order. The songs saved in folders will be read afterwards. Folders will be read in chronological order. When reading a folder, the same process starts once again and songs are read in alphabetical order.

Here you have a diagram of the reading order:

Esquema

2) ONE: the song you are listening to will be repeated over and over again.

2) FOLDER: the folder with the songs you are listening to will be repeated over and over again.

4) RANDOM: random playback of all the contents of your removable storage unit.

5) OFF: playback of all contents of the storage unit in the same order as in ALL mode but without repeating tracks.

Mini jack and RCA inputs (analogue inputs)

Your Party 6 features two analogue stereo inputs to connect external devices. The first one is a Mini jack audio-in (10) where you can connect the mini jack cable that comes with the product and the other one is a RCA input (stereo input) (29).

Mini jack input

Once you connect the cable to this input, "Line-in" mode will be enabled automatically and you will see the word "AUX 2" on the Display (14). You will be able to change playback mode even if the cable is still connected.

To start, pause or resume playback press Play and pause/ Tune in (22) on the device top display or the same button,(45), on the remote control.
We recommend to use this input to connect small devices such as mp3 players or smartphones.

RCA input

This audio-in is situated on the rear top part with the name "INPUT". It has been conceived to connect your TV or audio devices permanently.

When using the RCA input, the "RCA" mode will not be enabled automatically. Press Line-in function (mini jack/ RCA) (5) on the device top display or Change function (36) on the remote control until the word "AUX 1" appears on the Display (14) to enable it manually.

We recommend to use this input to connect audio systems such as stack systems, televisions or mixing desks permanently.

Important: In both cases, you will have to control music playback (volume, equalizer or track changes) from the external device that you connect to your Party 6.

FM radio

To use this function, you have to tune in to the available radio stations first. To do so, connect the radio antenna on the rear part of the top display and press and hold Play and pause/ Tune in (22) on the top display or the very same button on the remote control, (45), for two seconds while radio mode is enabled. The process may take a few minutes. The radio stations will be saved to the memory of your Party 6, therefore it is not necessary to carry out a new search each time you switch it on. You will only have to carry out a new search if you place the device in a new location or if you change the frequency of the saved radio station.

Once you have carried out a search of all radio stations available, press once again Play and pause/ Tune in (22) on the device top display or the same button on the remote control, (45), to choose the radio station that you prefer. Press briefly this button to switch from one saved station to another.

To improve radio signal connect the speaker to the radio socket on the wall of your house using an IEC male to female cable. Both antenna cables have to be connected to the FM Radio connection (34) on the back of your Party 6. We recommend to tune in to the radio stations using one of these options. This way, you will get a stronger signal.

Imagen1

RCA audio-out (analogue output)

Your Party 6 features a RCA output (stereo output) (30) which allows you to connect other speakers that have an analogue input in order to hear your music simultaneously through several speakers.

It is also possible to connect a second Party 6. To do so, connect one end of an RCA to RCA cable to the main speaker RCA output (stereo output) (30) and the other end to the second speaker RCA input (stereo input) (29). Music will be transferred to the second speaker and both devices will start playing music simultaneously, regardless of the playback mode of the main speaker. We recommend to adjust sound with the Sound equalizer controller (manual EQ) (25) of the main speaker to get a balanced sound. For more information on sound equalization see the Equalizer section of this manual.

USB port to charge external devices

Your Party 6 features an USB charging port (9) to connect an USB cable and charge other devices such as smartphones, tablets or MP3 players, even when the speaker is playing music.

"DC OUT" technical specifications:
Voltage = 5 V
Current = 2 A

Any device that requires more than 5 V voltage cannot be charged.

Important: If you are using the FM radio, it is important to keep the radio antenna away from the USB charging cable to avoid any interference while charging devices.

Equalizer (EQ)

Your Party 6 offers two equalizer modes to adjust sound the way that you prefer:

Equalizer with presets

Press the Digital equalizer with presets button (2) to choose between the following 6 digital equalizer modes with presets:

  • FLAT (flat response)
  • CLASSIC
  • VOCAL
  • POP
  • ROCK
  • JAZZ

Manual equalizer

You can also use the 5-band analogue equalizer to customize sound manually. Press the Enable manual equalizer button (8) to enable this option and use afterwards the 5 sound equalizer controllers (manual EQ) (25) to manually adjust each frequency band.

Manual EQ with two Party 6

As mentioned in the Analogue outputs section, you can connect two Party 6 using a "RCA to RCA" cable to play music on both devices simultaneously.

We recommend that you set the sliders of the Sound equalizer controller (manual EQ) (25) on the second speaker in the middle and adjust sound with the Sound equalizer controller (manual EQ) (25) on the main speaker. To do so, move down the 10 KHz band slider 2 points and the 3 KHz band slider one point. Keep the sliders of all other bands in the middle.

Microphone

Your Party 6 features a Jack audio-in for microphone (33) to connect the provided microphone. This option may be used while using any mode. The microphone has a switch to turn it on and off.

You can modify the microphone strength using the Microphone volume (12) button and applying the Microphone echo effect (17). Both controllers are on the device top display.

Audio-in for guitar

You will be able to use this input while playing content in playback mode or while playing the guitar only, as when using the Jack audio-in for microphone (33). We recommend that you turn down the Guitar volume (jack audio-in) (31) to the lowest level before connecting your guitar. You may select the volume that you prefer from that moment on.

Important: We recommend to turn down the volume to the lowest level first and select the volume that you like after connecting the guitar since extremely high volume may damage your Party 6.

Lights

Your Party 6 features a set of LED lights that will help you to enliven your parties. These lights feature several operating modes that you will be able to change pressing the Lighting modes button (13):

  • OFF: Lights remain off.
  • ON: Lights remain on and glow blue.
  • Pulse: Lights change colour to the beat of the music.
  • Breathe: Smooth light colour transitions.

Warranty

Please visit http://www.energysistem.com/en/support and select your product to view the FAQ (Frequently Asked Questions), user manual, quick guide, drivers and updates available, submit a query to Technical Support Service or manage the warranty.

You can check the availability of the user manual in your language at http://www.energysistem.com/en-en/support/manuals

You may also contact the distributor that sold the product by presenting the purchase receipt or invoice.

Important: This warranty does not cover any damage or loss of data stored in warranty products. Therefore, Technical Support of Energy Sistem Technology, S.A. will not assume any loss of the above mentioned information. In this respect it is recommended that you make a backup of your data and remove any personal data from the product's internal memory before you send it or send the device with the original data only.

Specifications are subject to change without notice.

Trademarks. All company, brand and product names are trademarks or registered trademarks of their respective companies.

©2017 by Energy Sistem®. All rights reserved.

Warranty

Energy Sistem Technology, S.A. is liable for any lack of conformity that exists at the time the goods are purchased during a period of 36 months.

This warranty does not cover any product failure due to accidents, misuse or alteration made by an unauthorized person.

The special 36 month warranty is valid for the European Union. For other countries please refer to your specific legislation or your local distributor.

Declaration of conformity

Issuer's name: Energy Sistem Technology, S.A. - CIF: A53107488

Address: C/ Calpe, 1 - 03509 Finestrat - Alicante (Spain)

Tel: + 34 966 83 03 24

We declare under our own exclusive responsibility that the product

Description: Sound tower.

Brand: Energy Sistem.

Model: Party 6.

Manufacturer: Energy Sistem Technology, S.A.

Manufacturing Country: China.

referred to in this declaration is in compliance with the essential norms and standards:

EN 300 328 V2.1.1 (2016-11)

EN 301 489-1 V2.1.1 (2017-02)

EN 301 489-17 V3.1.1 (2017-02)

EN 62479:2010

EN 60065:2014

in conformity with the essential norms and standards of the Directive 2014/53/EU of the European Parliament and of the Council of April 16th 2014.

Finestrat, 1st October 2017.

Imagen1

Marco Antonio Velázquez Fierro
Product Management Director
